Expandrack
1 / 5
| RD-33# Specifications & Capabilities | |||
|---|---|---|---|

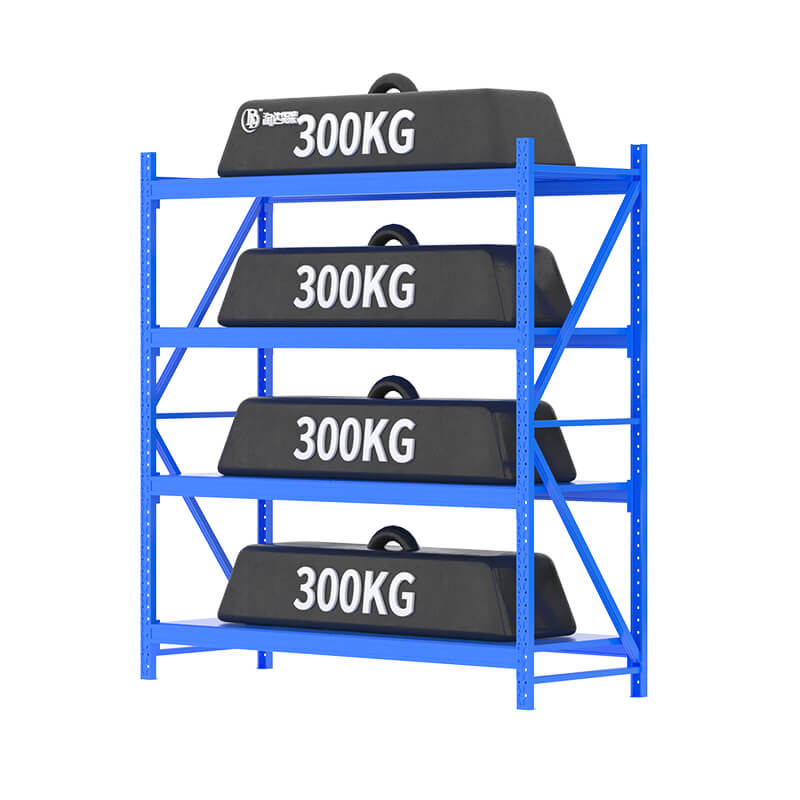

| Load Capacity | 300KG / Layer | ||
| Layers | Standard is 4 layers (can be custom made) | ||
| Colour | Gray white / Sand blue / Customizable | ||
| Dimensions | Length: 2000 mm | Width: 450/600 mm | Height: 2000 mm | ||
| Freight Note |
The generated transportation costs on the page significantly differ from the actual transportation costs. You can share your required product model, specifications, quantity, and delivery address to obtain an accurate shipping quote. If you have a Chinese freight agent, we can provide container loading and short-term storage services. |
||
| Structural Technical Parameters | |||
| Load / KG | Laminate Thickness | Column Specification | Crossbeam Specification |
| 100 KG | 0.30 mm | 50 * 25 * 0.5 mm | 50 * 30 * 0.5 mm |
| 200 KG | 0.35 mm | 70 * 35 * 0.7 mm | 60 * 35 * 0.6 mm |
| 300 KG | 0.50 mm | 60 * 30 * 1.0 mm | 70 * 33 * 1.0 mm |
| 600 KG | 0.50 mm | 70 * 33 * 1.4 mm | 70 * 35 * 1.2 mm |
To ensure a streamlined purchasing experience, please keep these three essential tips in mind:
The standard RD-33# configuration supports a load capacity of up to 300KG per layer. We also provide customized heavy-duty models that support up to 600KG per layer, or light-duty solutions ranging from 100KG to 200KG.
Yes, absolutely. The standard dimensions are 2000mm (Length) * 450/600mm (Width) * 2000mm (Height), but size specifications can be tailored to fit your warehouse space. Colors can be configured in Gray white, Sand blue, or custom schemes.
Our standard design incorporates 4 adjustable shelving layers. However, we can increase or decrease the layer count to optimize your inventory height requirements.
Freight is calculated based on exact product models, dimensions, order quantities, and final destination address. Please contact our support team with these specifics to get the most accurate, cost-effective shipping quotation.
Yes. If you have a freight agent in China, we can assist in the loading process and offer temporary short-term storage warehousing solutions to streamline cargo consolidation.
We deliver full turnkey solutions for racking setups, including industrial warehouse storage racks, supermarket retail shelving, mezzanine storage platforms, and specialized mobile cultivation grow frames.
