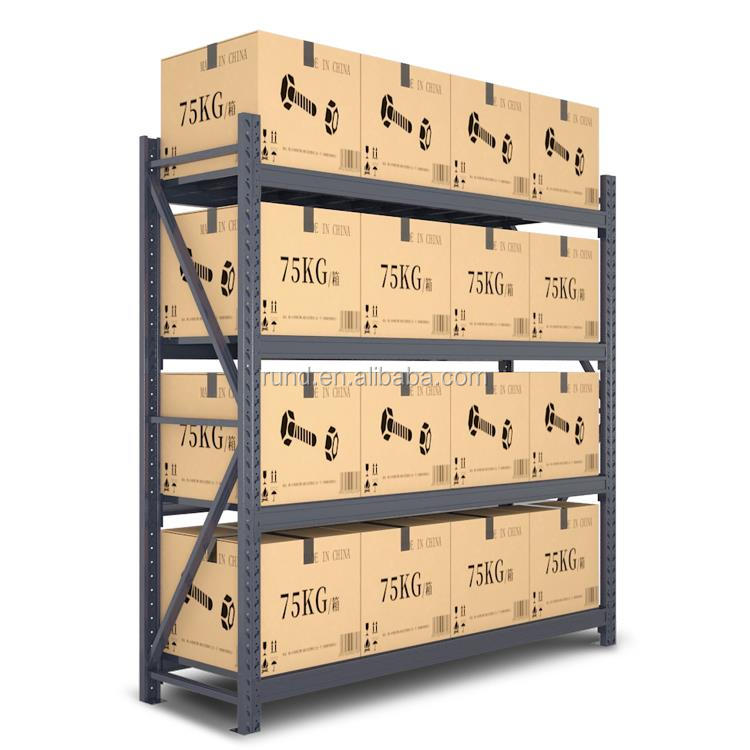

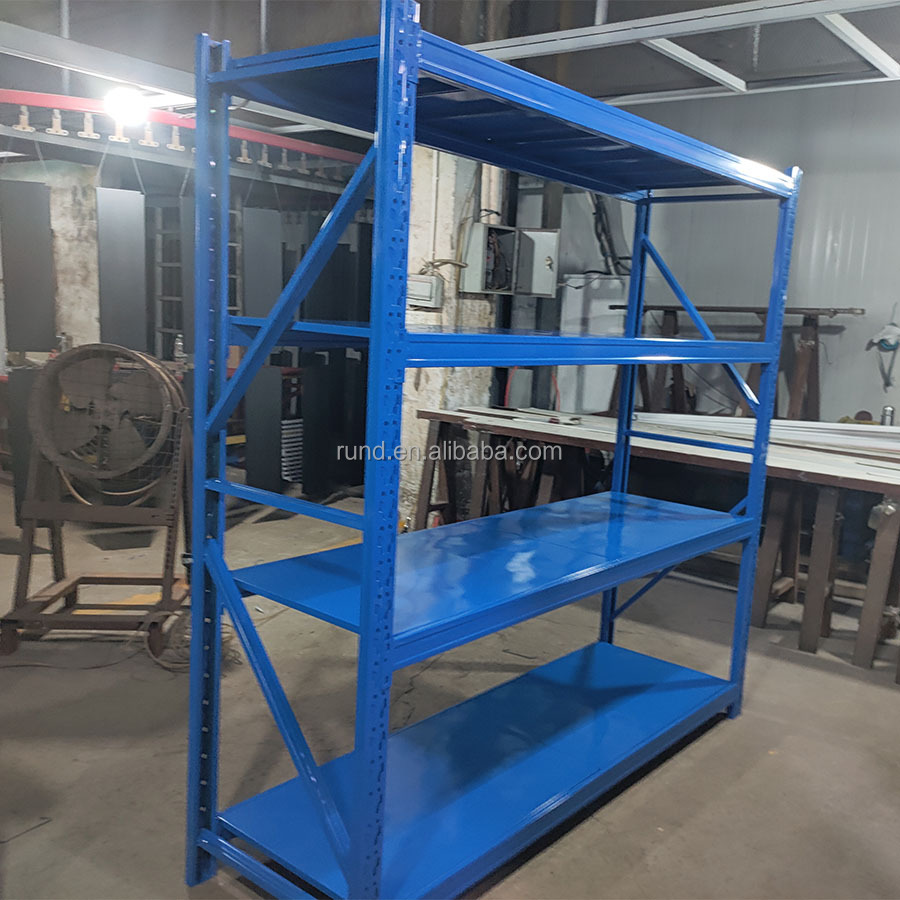

| RD-33# Specifications & Capacity Details | |
|---|---|

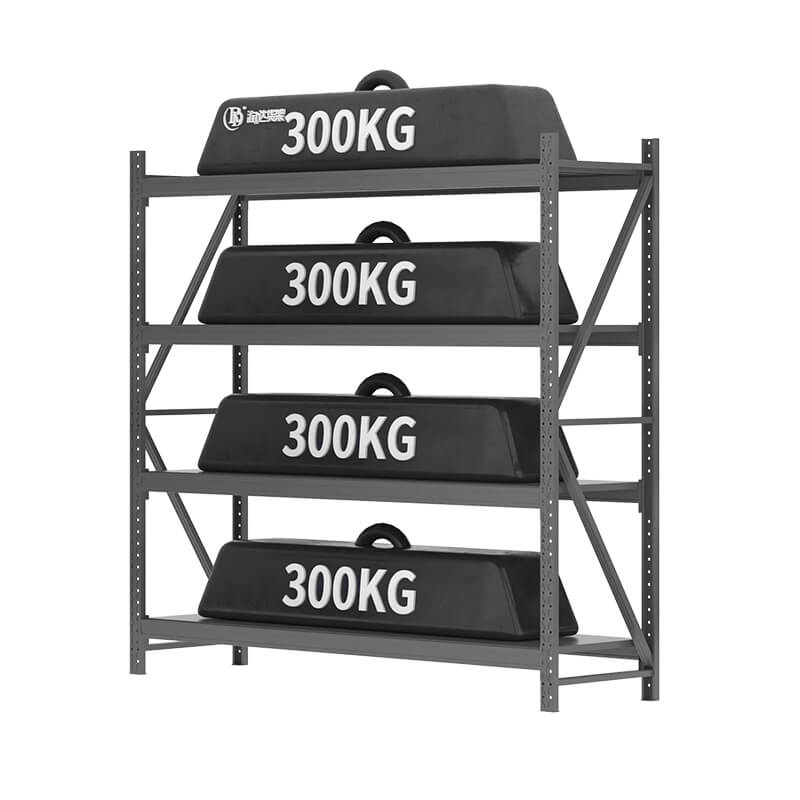

| Load Capacity | 300KG / Layer |
| Layers | Standard is 4 layers (can be custom made) |
| Colour Options | Gray white / Sand blue / Customizable |
| Standard Dimensions |
Length: 2000 mm Width: 450 / 600 mm Height: 2000 mm |
| Transportation Note |
The generated transportation costs on the page significantly differ from the actual transportation costs. Please contact our customer service department with the product model, specifications, quantity, and delivery address to obtain an accurate shipping quote. If you have a Chinese freight agent, we can provide container loading and short-term storage services. |

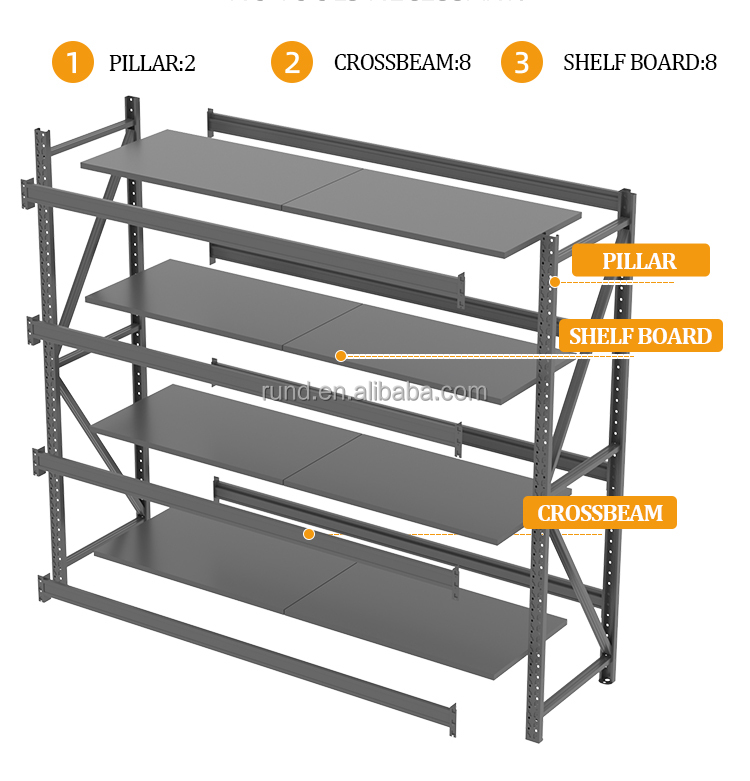

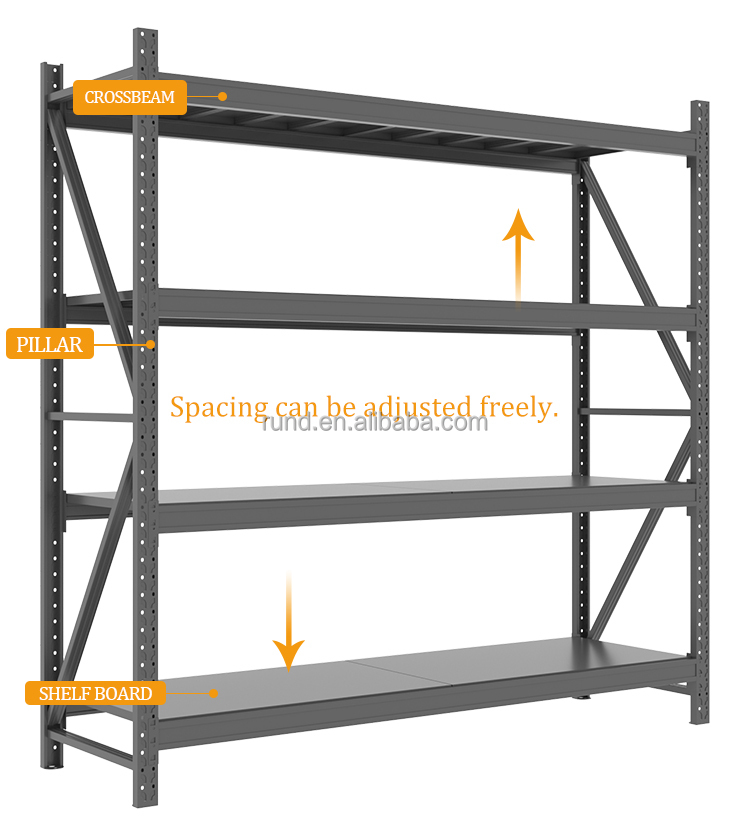

| Load / KG | Laminate Thickness | Column Specification | Crossbeam Specifications |
|---|---|---|---|
| 100KG | 0.30 mm | 50*25*0.5 mm | 50*30*0.5 mm |
| 200KG | 0.35 mm | 70*35*0.7 mm | 60*35*0.6 mm |
| 300KG | 0.50 mm | 60*30*1.0 mm | 70*33*1.0 mm |
| 600KG | 0.50 mm | 70*33*1.4 mm | 70*35*1.2 mm |
In order to have a better understanding of our product, please allow us to remind you with following three tips:
